    Features
  •  24” stroke
  • 3 stations
  • 4-tons maximum pulling capacity
  • 0-38 SFPM broaching speed
  • 64 SFPM return speed
  • 5 hp., 3-phase, 230/460 V, 60HZ motor
  • hp., 3-phase, 230/460 V, 60 HZ coolant motor
  • 2-button control system
  • Programmable controls
  • 2” diameter linear guide ways
  • Hydraulic powered automatic broach retrieval system
  • Maximum work piece O.D.
                1pc —— 14”
                2pcs ——8”
                3pcs ——4”
  • Machine dimensions:
                Depth —— 48”
                Width —— 44”
                Height ——98”

    Typical Applications

  • Internal and external cuts
  • Runs 3 broaches per cycle

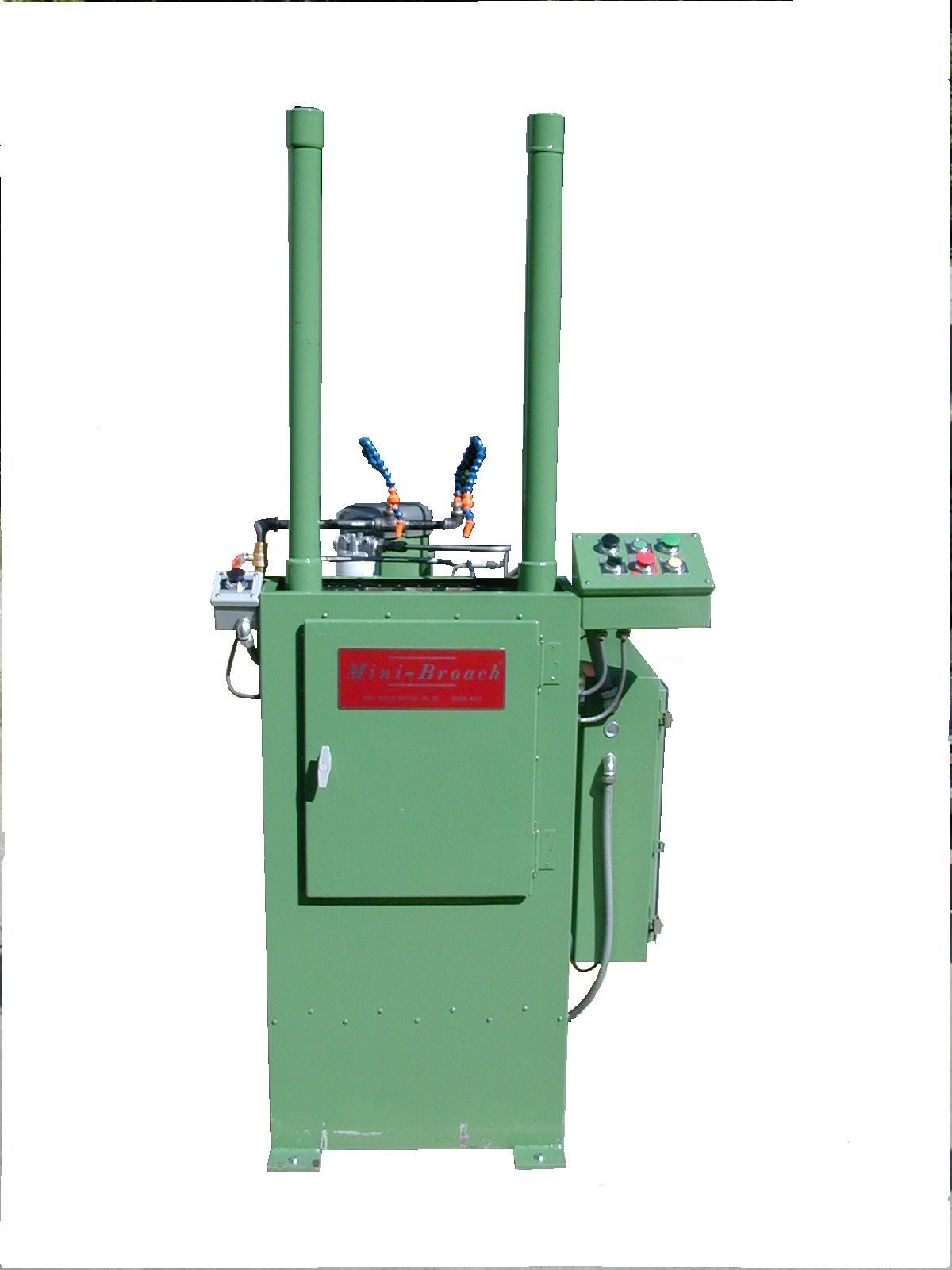

Model AV-2K
Click here for a larger view

    Optional Equipment

  • "Mini-safe" infra-red light curtain
  • 10 hp. hydraulic system
  • Robotic load and unload
  • Automatic broach handling
