    Features
  • 15-ton pulling capacity
  • 64” stroke
  • 20 hp., 3-phase, 230/460 V hydraulic system
  • Load-sensing piston type hydraulic pump
  • 2” diameter round-type guide ways
  • 4 ½ × 2” hydraulic pulling cylinder
  • Adjustable height pulling head (vertical direction only)
  • hp. coolant system
  • Programmable controller

    Typical Application

  •  High tonnage internal and external cuts
  • Broach follower applications
  • Longer and larger spline applications
  • Heavier surface broaching applications

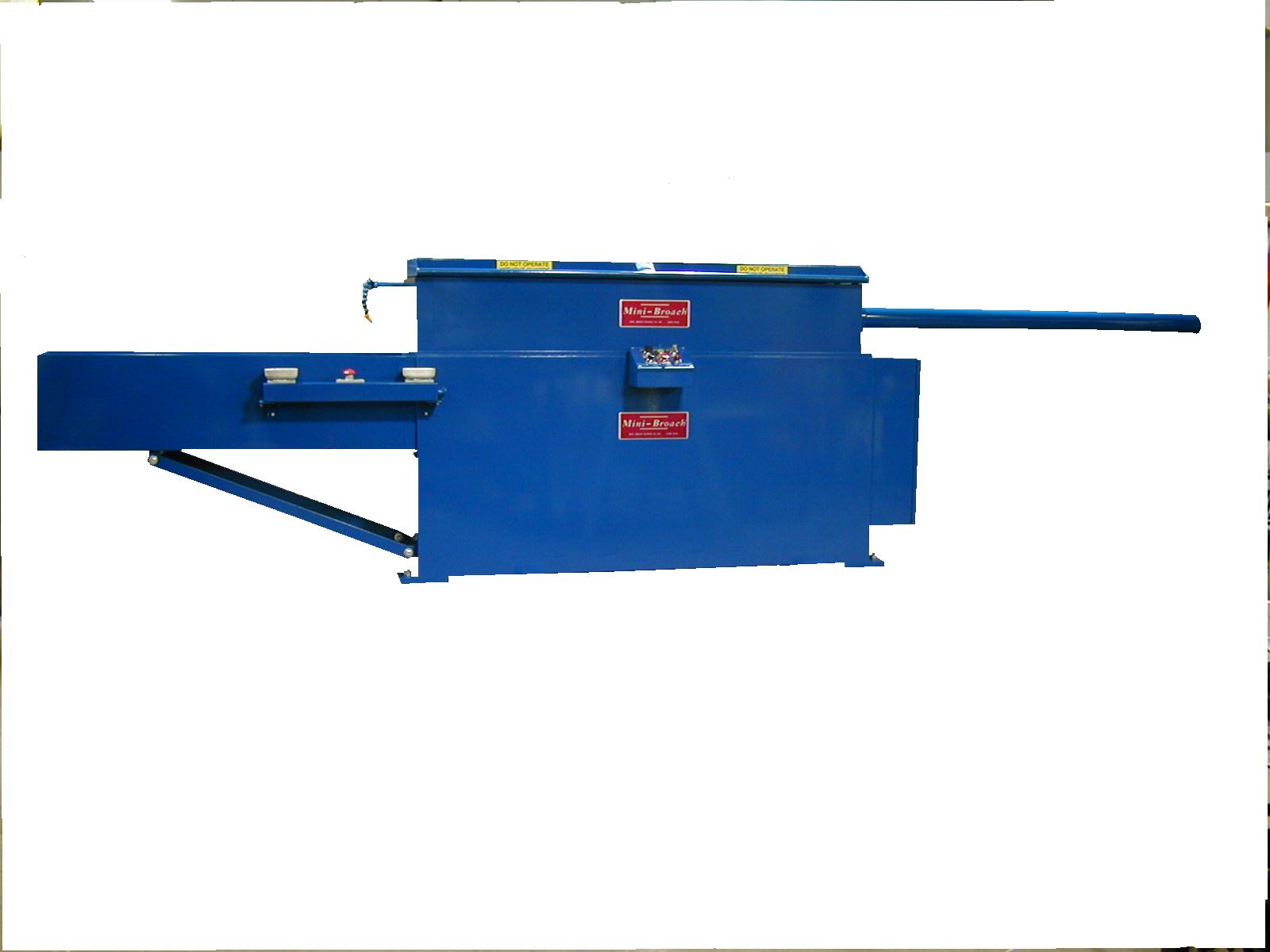

Model 15H64

Click here for a larger view

    Optional Equipment

  • "Mini-safe" infra-red light curtain broach follower

  • Automatic power clamp system

  • Broach follower system
