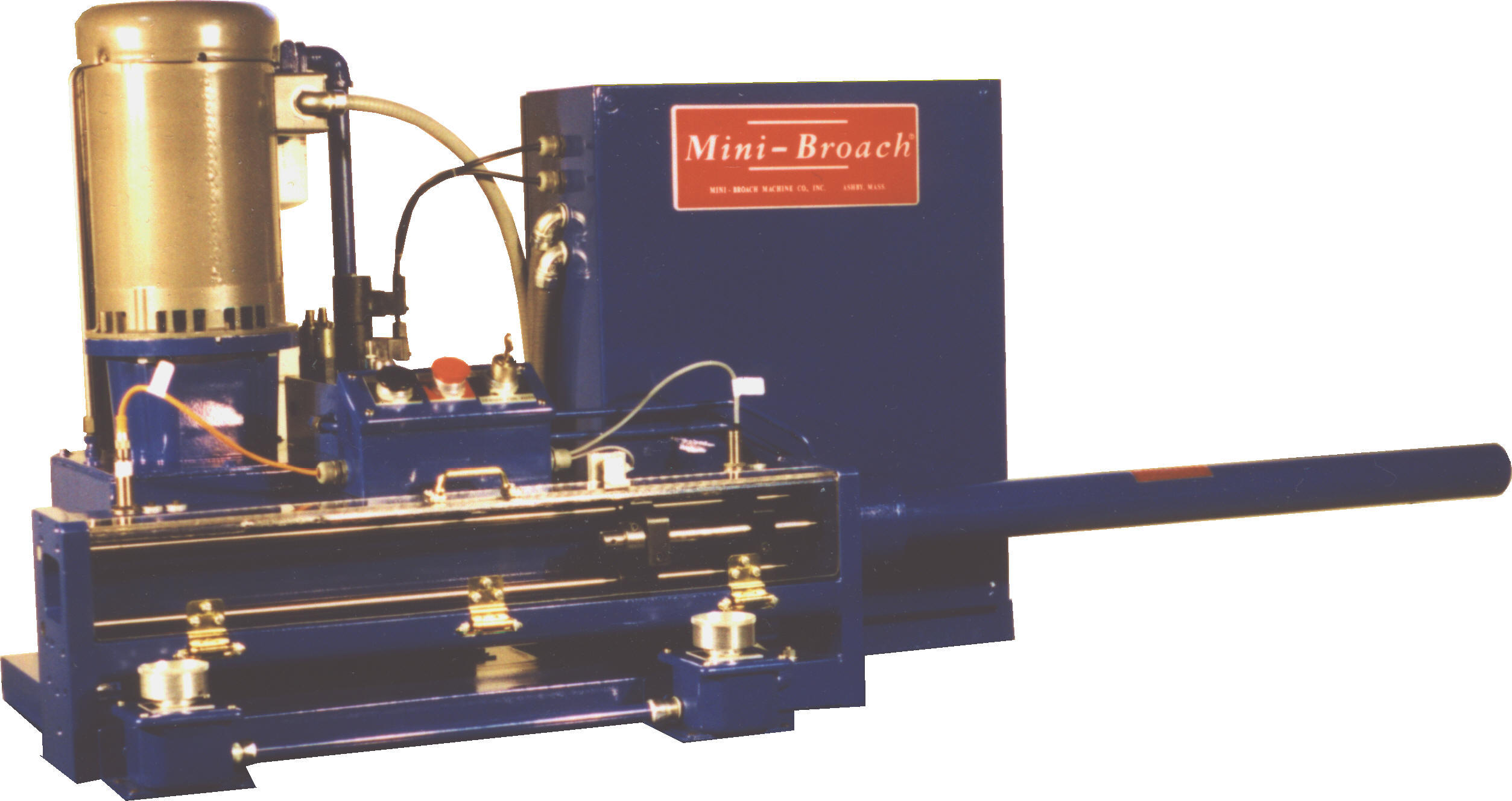

    Features
  • 2-ton capacity
  • 0-24 fpm broaching speed
  • Fixed 20 fpm return speed
  • Pressure compensated hydraulic system
  • Three point guiding system
  • PLC controlled
  • Dual palm button control
  •  24” × 70” footprint
  • Auto pull head capable


    Typical Applications

  • mbm, mbr, mb, ms, mr, m, mw  series – one pass  keyway pull broaches
  • Splines to approximately ⅝” major diameter
  • Hexes to ¾”
  •  Squares to ⅝”
  • Manually operated surface and Straddle cuts



    Optional Equipment

  • Base with coolant system
  • Infra-red light curtain safety system
  • Casters with wheel locks
